Devsol 3.5kW Hybrid Inverter – Technical Specification

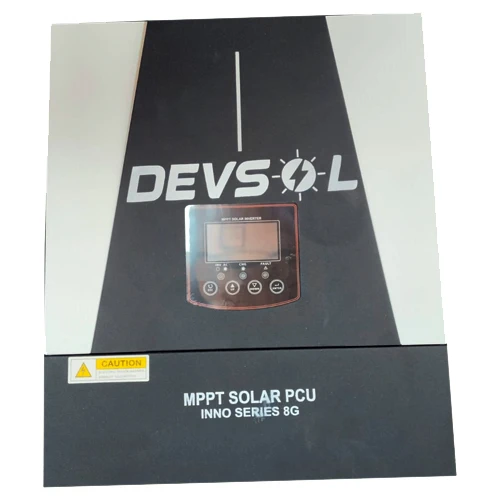

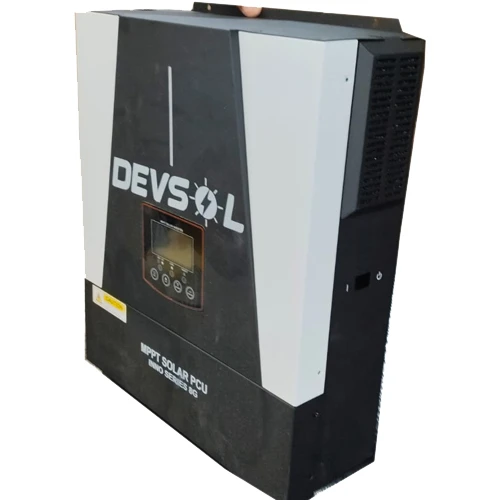

Overview:The Devsol 3.5kW Hybrid Inverter is a powerful and efficient energy solution designed to operate without a battery or with lithium or lead-acid battery. Equipped with an Advanced Hybrid MPPT, it maximizes solar power utilization by up to 40% and supports grid export for enhanced energy management.
| Category | Specifications |
|---|---|
| Inverter Type | Hybrid (Batteryless & Battery Compatible) |
| Rated Power | 3500W (3.5kW) |
| Solar PV Input | Up to 4000W |
| Battery Support | 24V Lithium / Lead-Acid (Optional) |
| Batteryless Mode | Yes (Operates without a battery) |
| MPPT Technology | Advanced Hybrid MPPT (Up to 40% Power Gain) |
| MPPT Voltage Range | 120V – 450V |
| Max PV Voltage (VOC) | 450V |
| MPPT Efficiency | 99.5% |
| Power Factor (PF) | 1.0 (Unity) |
| Output Voltage | 220V – 240V AC |
| Output Frequency | 50Hz / 60Hz (Auto Adjustable) |
| Waveform | Pure Sine Wave |
| Load Output | Single |
| Grid Export | Yes |
| Conversion Efficiency | > 98% |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Cooling System | Intelligent Fan Cooling |
| Operating Temperature | -10°C to 50°C |
| IP Rating | IP21 (Indoor Use) |
| Monitoring & Communication | LCD Display, RS232 / RS485, Optional WiFi |
| Surge Protection | Yes |
| Reverse Polarity Protection | Yes |
